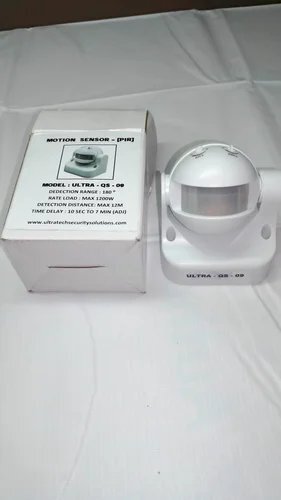

ULTRA QS - 09 180 DEGREE PIR MOTION SENSOR

Get a Price/Quote

MOQ : 1 Unit

ULTRA QS - 09 180 DEGREE PIR MOTION SENSOR Specification

Operating Temperature
-20 to +40 Celsius (oC)

Measurement Range
1.8 ~ 3.7m. 2.4m Typical

Sensor Type
5Lux, 15 Lux, 50Lux,2000Lux

Features
Low power consumption

Signal Type
Digital

Wireless
Yes

Product Type
SENSOR

Power Rating
85 - 265V AC, 25mA Max

Material
Plastic

Output
2 seconds to 4 minute

Usage
Home Automation

Voltage
220-240 Volt (v)

Usage & Applications
HOME AUTOMATION

Warranty
6 MONTHS

Display Type
180 Degree / 360 Degree

Frequency
50/60 Hz Hertz (HZ)

ULTRA QS - 09 180 DEGREE PIR MOTION SENSOR Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Units Per Month

Delivery Time
2-10 Days

Main Domestic Market
All India

About ULTRA QS - 09 180 DEGREE PIR MOTION SENSOR

Detection Angle	180 Degree
Power Source	220-240 V AC
Application	Home Automation
Power Consumption	0.9W (work)
Rated Load	1200W (incandescent lamp)
Detection Motion Speed	0.61.5m/s
Ambient Light	3-2000LUX (Adjustable)
Working Temperature	-20 to +40 Degree C
Installing Height	1.8m2.5m
Brand	Ultra
Model/Type	Ultra-QS-09
Power Sourcing	220V/AC-240V/AC
Detection Range	180 Degree
Time-Delay	min.10sec+-3sec, Max.8min+-2min
Working Humidity	<93%RH
Power Frequency	50 Hz

The product is a new saving-energy switch; Pir Motion Sensor Weather Proof For Outdoor Use ULTRA QS 09, it adopts a good sensitivity detector and an integrated circuit. It gathers automatism, convenience, safety, energy-saving, and practicality functions. The wide detection field consists of detectors. It works by receiving human motion infrared rays. When one enters the detection field, it can start the load at once and identify day and night automatically; its installation is very convenient, and its use is very wide. It has functions of power indication and detection indication.
